2-IN-1 DC Evaporative Humidifier with Fan for Large Room Humidification
Evaporator system
The device is designed with large-area air inlet, applied with an folding and anti-bacteria water absorption evaporation net(mat)which is placed in the basin and saturated with water. A fan draws the dry room air through the damp mat, the water molecule escapes from its large surface, move faster to the room air and covers every corner as fast as the speed of molecular diffusion motion.
The diameter of a water molecule is around 0.275nm(nanometer), it cannot carry the bigger particle size as like bacteria, virus and dust, meanwhile the calcium and magnesium compound is left behind to avoid “white dust(white mineral powder), so besides the natural evaporation humidification process, the air is simultaneously washed, i.e. cleaned of dust and dirt particles. As the air holds more or less humidity depending on the temperature, evaporators automatically provide the correct level of air moisture in accordance with the evaporation principle.
Thus in, the device efficiently provides the most healthy and humidified air to help create a more healthy indoor climate for better living.
Breaking through the traditional integrated structure, this split evaporative humidifier integrates the functions of a humidifier, a fan and a night light, so as to effectively expand its functions.
This is a split vaporizer humidifier equipped with the functions of a humidifier, a fan, and a night light.
Convenient water inlet/Wide nozzle
Take the upper body Unscrew Turn the air inlet cover
The fan can be disassembled for easy cleaning
Take off the cover Rotary the fixed cover Clean the fan
The main body is equipped with a direct current(DC)motor and reasonable air duct design, when removed from the basin, it can be treated as a fan to offer silent, comfortable cool breeze in a quiet way.
The folded antibacterial water-absorbing evaporating net, large air inlet, and fan driver contributes to more efficient humidification.
Water Window Air inlet

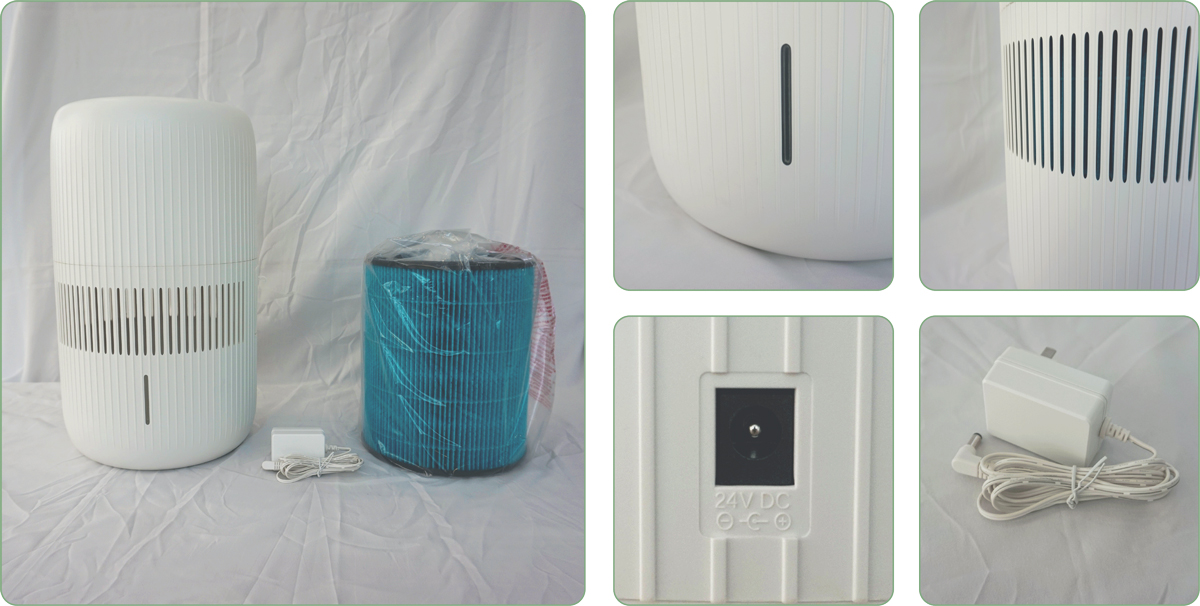

Body/Spare Parts DC power Adapter
Intelligent screen display can monitor and display the ambient humidity and other information in real-time.
Night light Timer Fan Speed Sleep mode Power Humidity
7 Color light
Loaded soft night light makes it convenient to be used at night.
Washable High water absorption and evaporation rate
Anti-bacteria Environmentally friendly non-woven fabric
The water absorption and evaporation net is made of environmental friendly washable non-woven anti-bacterial material with high water absorption and high evaporation rate.
The silver ion antibacterial components in the filter contributes to the effective bacterial inhibition for clean and moist indoor air.
Inlet Air Air Out
Wet antibacterial water absorbing evaporation net
High rate of water absorption / evaporation with large area of surface to release water molecules fast.
Gentle and power air flow from the air outlet
Fastest evaporation at the speed of molecule motion to cover every tiny corner evenly
DC fan Air duct design
Moist & Healthy air
1. Well designed air duct 2. Five blades DC fan 3. Large are air inlet design
4. Dust precipitation 5. H2O 6. Pure H2O
7. Dry air / bacteria / dust
8. Anti bacterial filter
H2O Tiny water droplet Escherichia Coli Staphylococcus Aureus Dust
Ultrasonic Humidifier CF-6148 Evaporative Humidifier
CF-6148 Evaporative Humidifier
Healthy aseptic humidification
CF-6148 applies the physical vaporization principle to deliver water molecules into indoor climate via an absorption evaporation medium. The circulating air flow generated by the DC fan drives the surface water of the evaporation net to evaporate rapidly, that is, it accelerates the escape of water molecules into the indoor air. The diffusion movement of water molecules effectively covers the whole room, and 360 ° uniform humidification without dead angle. The diameter of water molecule(H2O) is about 0.275nm, and it cannot carry particles such as bacteria and dust larger than it, thus providing an optimal
health humidification solution.
Ultrasonic Humidifier
Water droplets can carry bacteria/virus/dust
The traditional ultrasonic humidifier is vibrated by the high-frequency transducer to break the water into tiny water droplets with a particle size of 3-5μm. The common bacteria in daily water are mainly Escherichia coli(with a particle size of 50nm), Staphylococcus aureus(with a particle size of 80nm), and 5μm For example, it can contain 100 Escherichia coli or 62 Staphylococcus aureus. Impurities in the water such as particles and calcium and magnesium compounds will be carried and released into the indoor air along with the water mist, which is not conducive to human breath.
Humidify quickly
Diffusion of H2O 4 Fan Speed Entire Room Humidity
Noisy bars Supermarket Streets Talking Flying of Mosquito Whispering
1. Air outlet 2. Fan blade(detachable) 3. Main body Air inlet 4. Filter fixed frame 5. Tank air inlet 6. Water Level Window
7. Touch key 8. Body 9. Fan Screw(Detachable) 10. Main body inlet(Detachable) 11. Filter 12. Side open/Silica gel handle 13. Tank
Parameter & Packing Details
| Product name | Evaporative Humidifier |
| Model | CF-6148 |
| Dimension | 242*242*388mm |
| Water capacity | 4L |
| Mist output(Testing condition:21℃, 30%RH) |
Turbo: 650ml/h；H: 450ml/h；M: 300ml/h，L: 150ml/h |
| Power |
Turbo: ≤11.5W；H: ≤7.5W；M: ≤4.5W；L: ≤3.5W |
| Adapter wire length |
1.5m |
|
Operation noise |
Turbo: ≤44dB；H: ≤40dB；M: ≤33dB；L: ≤24dB |
|
Safety protection |
Under normal / sleep mode, water shortage digital display prompts & water tank separation digital display prompts the fan to stop working |
|
Optional Function |
UVC function, Remote control, Wi-Fi |
|
Operation noise |
20FCL: 800pcs；40’FCL: 1640pcs；40’HQ: 1968pcs |
Benefits_Humidifier
A humidifier maintains a level of moisture in the room area. Moisture is needed more in dry climates and when the heat is turned on in the fall and wintertime. People tend to have more issues when it is dry and that can cause concerns with skin dryness, and bacterial and viral problems triggered because of ambient air dryness.
Many people use a humidifier for treating the symptoms of colds, flu, and sinus congestion.
